MTN 12mm Momentary Switch (for momentary / e.switch drivers)
Product Code: MTN-MOMSW-12.2MM
Availability: 175
Availability: 175
Price: $1.00
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare
This pre-soldered switch can serve as a replacement for a lot of momentary switches found in lights, and is also useful for use in many momentary driver conversions.
Available with and without LEDs pre-soldered. 0.8mm PCB thickness.
LEDs are OPTIONAL.

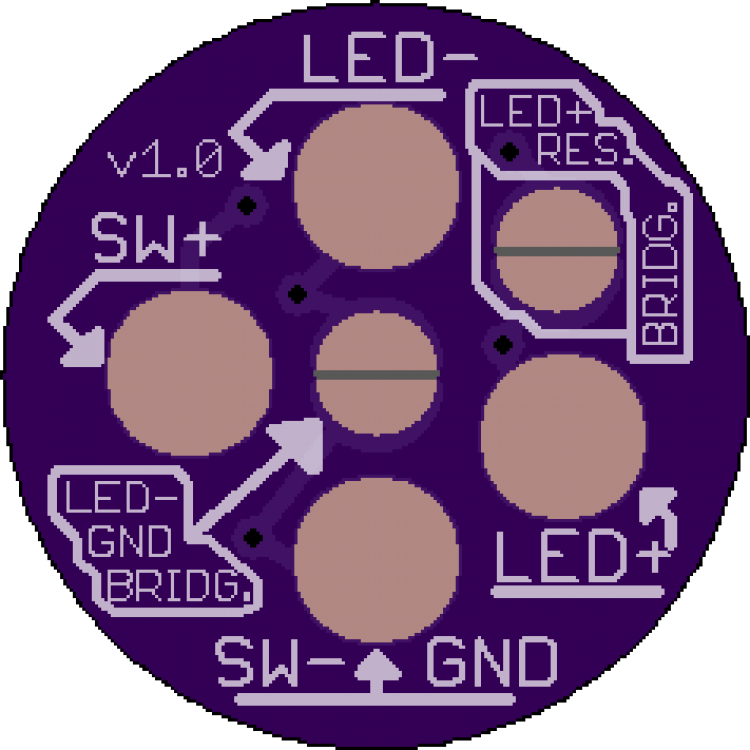

Connection Points / Bridge Points:
Because this switch was designed to be as versatile as possible, there are several different connection points and possible configurations.
- Switch Connections: SW+ & SW- GND (SW- is ground).
- LED Connections:
- If connecting directly to Batt+ or from an MCU output: LED+ & bridge "LED- GND BRIDG."
- If switching from a negative side (such as a MOSFET): LED- & LED+. Do not bridge anything.
LED Option:

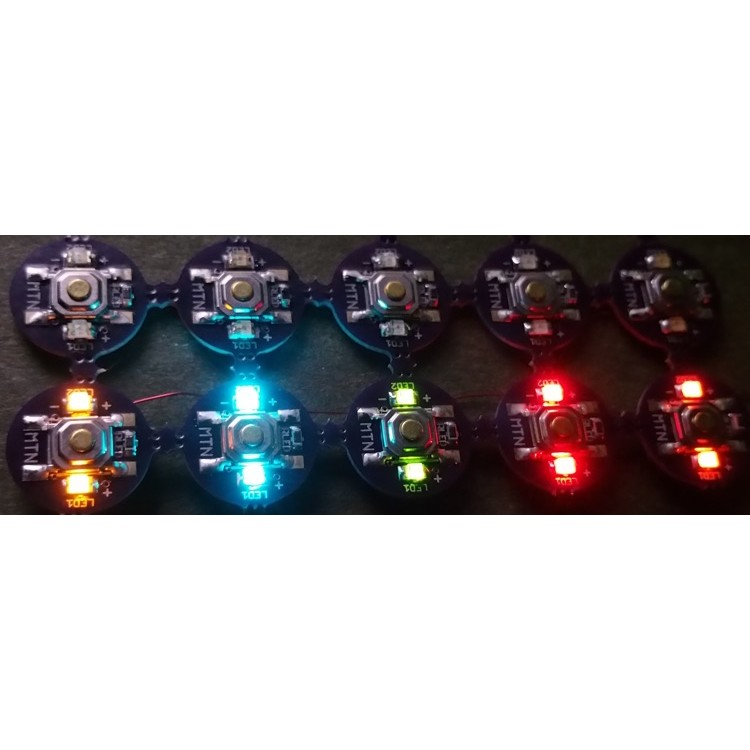

Optionally, you may have two color or white LEDs pre-installed on the switch, which are often used as indicator lights.
Three SMD 0603 resistors will come included, but not installed (4.7K, 19.1K & 36K). You can try different resistor combinations depending on your input voltage and desired LED brightness. We recommend that you start with 36K---you can then swap or stack more resistors to increase the current from there. It is not recommended to go above a few mA of current to these small LEDs. The lower the total resistance value, the brighter the LEDs will be.
Available Colors:
- Red
- Green
- Blue
- Yellow
- Orange
- White
Switch Specifications:
Switching Action: Momentary (closed only while pressed)
Height: 1.5mm
Length: 5.2mm (square)
Maximum Current: 0.1A (plenty for switching a momentary driver)
PCB Specifications:
Diameter: 12mm.
PCB Thickness: 0.8mm
