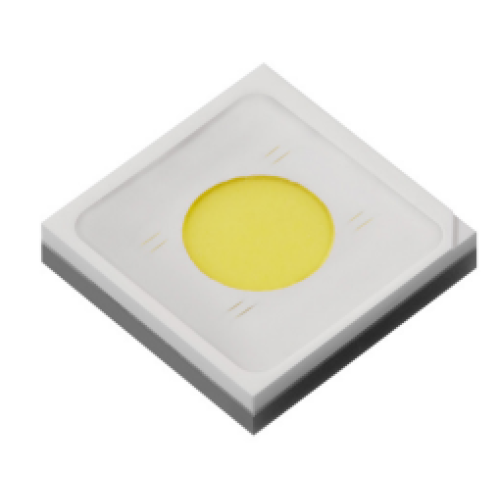

The SFT-42R is a super-high power output 3V nominal LED that gives great focus in many optics due to its round die pattern.  It can handle lots of current!

Mounted on a direct-thermal-path copper MCPCB.

Like all of our LEDs, bare LEDs are not available for sale.

MCPCB Options:

• 16mm MTN Copper DTP MCPCB
• 20mm MTN Copper DTP MCPCB

Specifications:

• Maximum Drive Current:  13A (assuming good heatsinking that can maintain a ~85C LED die temperature)
• Tint:  5000K (Neutral White)
• Flux Bin:  G1 (~680 lumens @ 1500mA 85C)
  • 1238 lumens @ 3000mA 85C
  • 2142 lumens @ 6000mA 85C
  • 2876 lumens @ 9000mA 85C
  • 3618 lumens @ 13000mA 85C
• Mounted on a direct-thermal-path copper MCPCB for maximum thermal performance
