You want to build the ultimate pocket rocket? This board is for you! We also have Carclo optics available that fit this board.
Description:

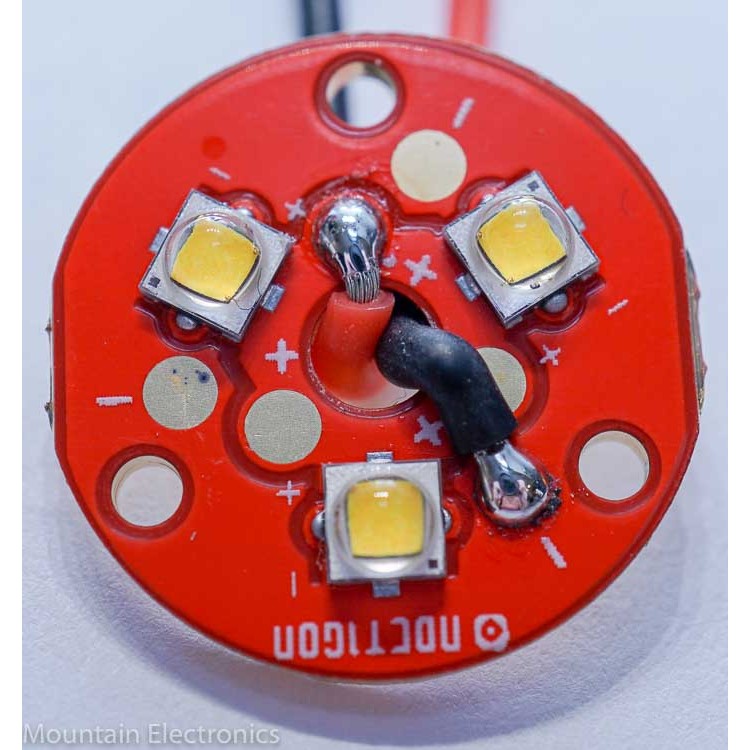

- CREE XP-G2 S4 5D LEDs on Noctigon 3XP MCPCB
- Approximate light output per LED: 625-655 lumens @ 1.5A 25°C
- Color temperature: 4000-4125K
- Tint: Neutral/warm white
- Direct thermal path
- Wide, heavy copper traces
- Parallel configuration

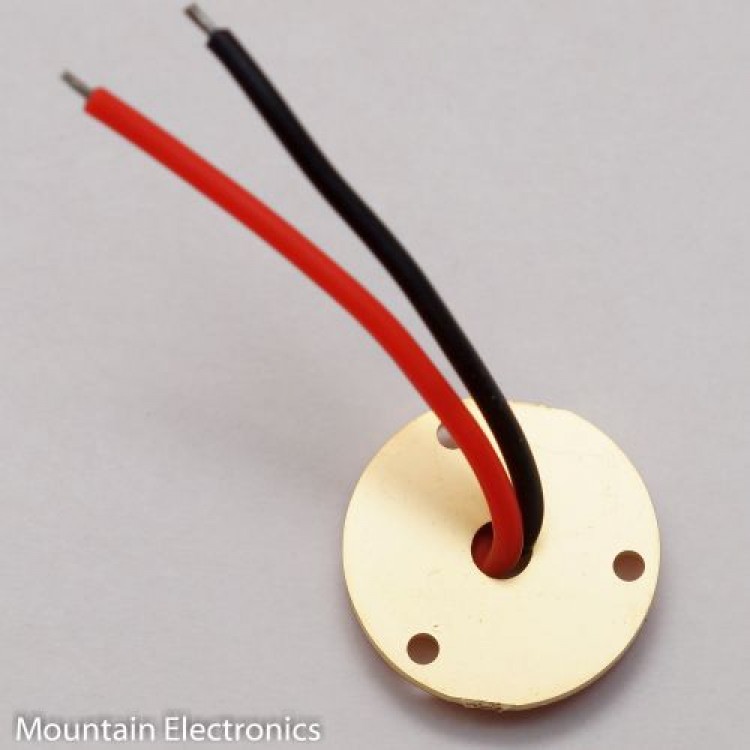

- Easy wire connection, only 2 leads.
- Gold plated pads and copper core
- Flat bottom surface
- Suitable for indoor, outdoor and flashlight use
- Compatible with Carclo 10507, 10508, 10509, 10510 and 10511 optics
- Diameter: 20mm, Thickness: 1.75mm
- Silicone insulated leads already soldered, each 5cm long, 22 AWG, High Temp, 60 strands
(3) CREE XP-G2 S4 5D LEDs on NOCTIGON 3XP COPPER MCPCB
- Brand: Noctigon
- Product Code: NOCT-XPTRIP-5D
- Availability: 3
- $11.99
-
$7.99
